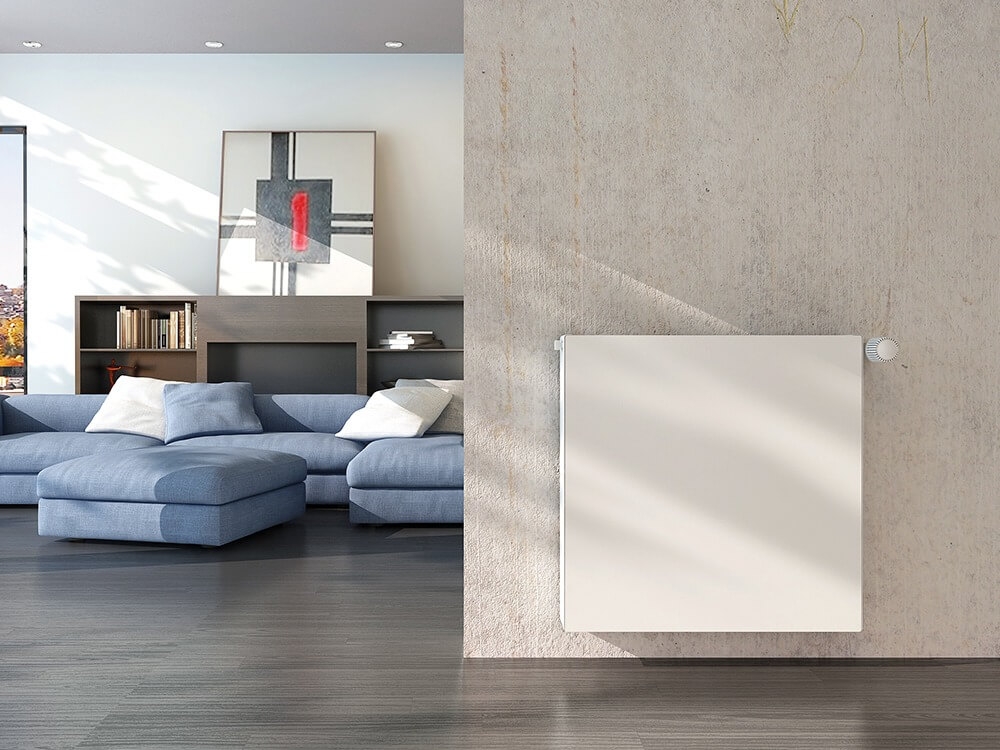

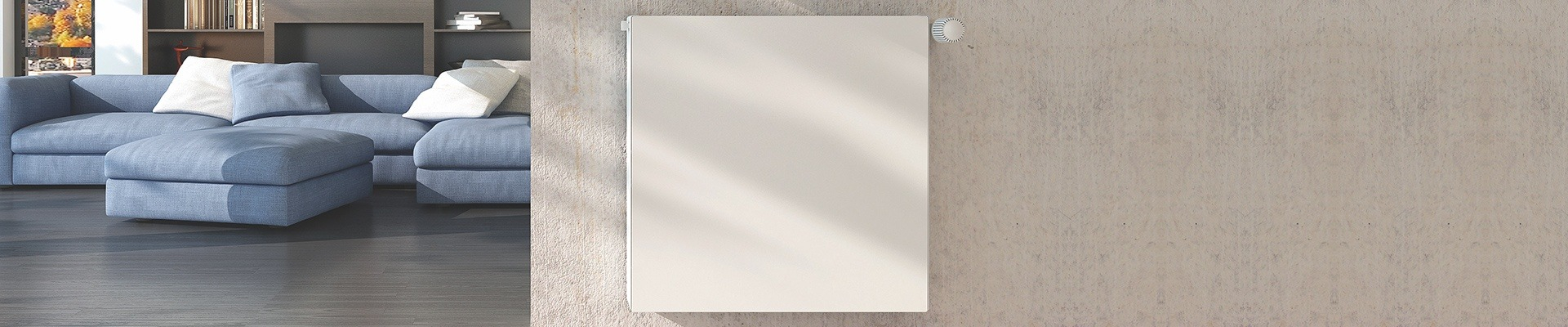

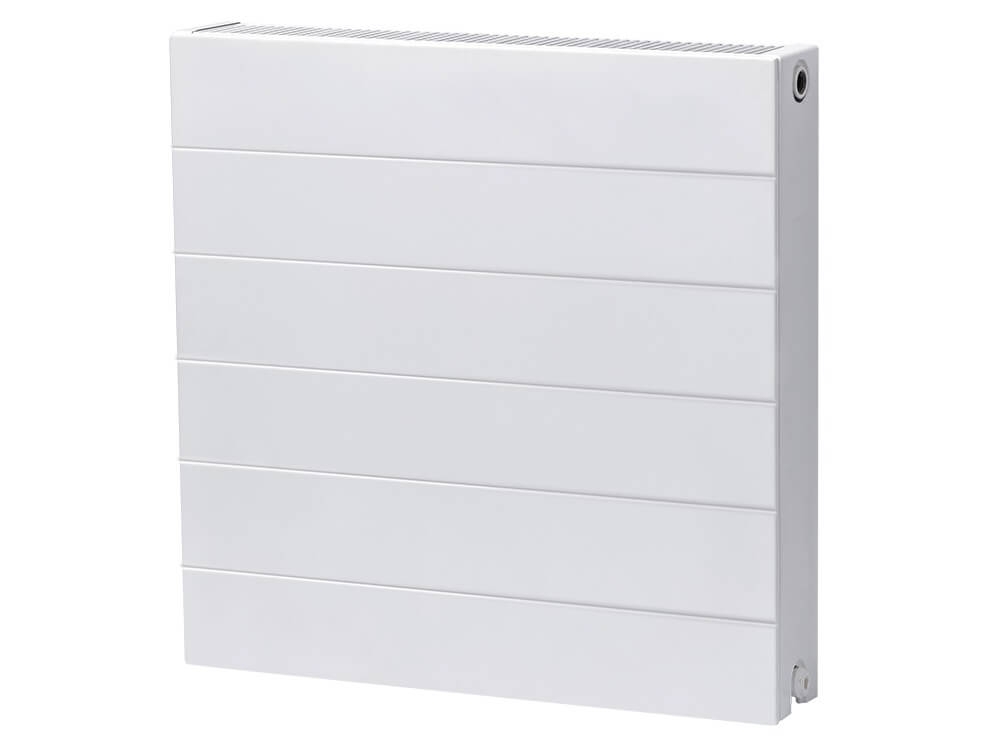

Warmhaus Flat & Flat Line Radiators offer not only a stylish appearance but also optimal thermal efficiency and easy-to-clean smooth surfaces. All the advantages of compact, valved, and center-connected radiators can be found in a flat radiator.
Tip | Type 21(PCP) | Type 22 (PCP) | ||||||||||||
Height | 300 | 400 | 500 | 600 | 700 | 750 | 900 | 300 | 400 | 500 | 600 | 700 | 750 | 900 |
300 | 196 | 246 | 296 | 347 | 385 | 405 | 463 | 250 | 322 | 393 | 464 | 517 | 543 | 622 |
400 | 261 | 328 | 395 | 462 | 514 | 540 | 617 | 334 | 429 | 524 | 619 | 689 | 724 | 829 |
500 | 326 | 410 | 494 | 578 | 642 | 675 | 771 | 417 | 536 | 655 | 774 | 862 | 905 | 1036 |
600 | 391 | 492 | 592 | 693 | 770 | 809 | 925 | 500 | 643 | 786 | 929 | 1034 | 1086 | 1243 |
700 | 456 | 574 | 691 | 809 | 899 | 944 | 1079 | 584 | 750 | 917 | 1084 | 1206 | 1267 | 1450 |
800 | 522 | 656 | 790 | 924 | 1027 | 1079 | 1234 | 667 | 858 | 1048 | 1238 | 1378 | 1448 | 1658 |
900 | 587 | 738 | 888 | 1040 | 1156 | 1214 | 1388 | 751 | 965 | 1179 | 1393 | 1551 | 1629 | 1865 |
1000 | 652 | 820 | 987 | 1155 | 1284 | 1349 | 1542 | 834 | 1072 | 1310 | 1548 | 1723 | 1810 | 2072 |
1100 | 717 | 902 | 1086 | 1271 | 1412 | 1484 | 1696 | 917 | 1179 | 1441 | 1703 | 1895 | 1991 | 2279 |
1200 | 782 | 984 | 1184 | 1386 | 1541 | 1619 | 1850 | 1001 | 1286 | 1572 | 1858 | 2068 | 2172 | 2486 |
1300 | 848 | 1066 | 1283 | 1502 | 1669 | 1754 | 2005 | 1084 | 1394 | 1703 | 2012 | 2240 | 2353 | 2694 |
1400 | 913 | 1148 | 1382 | 1617 | 1798 | 1889 | 2159 | 1168 | 1501 | 1834 | 2167 | 2412 | 2534 | 2901 |
1500 | 978 | 1230 | 1481 | 1733 | 1926 | 2024 | 2313 | 1251 | 1608 | 1965 | 2322 | 2585 | 2715 | 3108 |
1600 | 1043 | 1312 | 1579 | 1848 | 2054 | 2158 | 2467 | 1334 | 1715 | 2096 | 2477 | 2757 | 2896 | 3315 |
1700 | 1108 | 1394 | 1678 | 1964 | 2183 | 2293 | 2621 | 1418 | 1822 | 2227 | 2632 | 2929 | 3077 | 3522 |
1800 | 1174 | 1476 | 1777 | 2079 | 2311 | 2428 | 2776 | 1501 | 1930 | 2358 | 2786 | 3101 | 3258 | 3730 |
1900 | 1239 | 1558 | 1875 | 2195 | 2440 | 2563 | 2930 | 1585 | 2037 | 2489 | 2941 | 3274 | 3439 | 3937 |
2000 | 1304 | 1640 | 1974 | 2310 | 2568 | 2698 | 3084 | 1668 | 2144 | 2620 | 3096 | 3446 | 3620 | 4144 |
2100 | 1369 | 1722 | 2073 | 2426 | 2696 | 2833 | 3238 | 1751 | 2251 | 2751 | 3251 | 3618 | 3801 | 4351 |
2200 | 1434 | 1804 | 2171 | 2541 | 2825 | 2968 | 3392 | 1835 | 2358 | 2882 | 3406 | 3791 | 3982 | 4558 |
2300 | 1500 | 1886 | 2270 | 2657 | 2953 | 3103 | 3547 | 1918 | 2466 | 3013 | 3560 | 3963 | 4163 | 4766 |
2400 | 1565 | 1968 | 2369 | 2772 | 3082 | 3238 | 3701 | 2002 | 2573 | 3144 | 3715 | 4135 | 4344 | 4973 |
2500 | 1630 | 2050 | 2468 | 2888 | 3210 | 3373 | 3855 | 2085 | 2680 | 3275 | 3870 | 4308 | 4525 | 5180 |
2600 | 1695 | 2132 | 2566 | 3003 | 3338 | 3507 | 4009 | 2168 | 2787 | 3406 | 4025 | 4480 | 4706 | 5387 |
2700 | 1760 | 2214 | 2665 | 3119 | 3467 | 3642 | 4163 | 2252 | 2894 | 3537 | 4180 | 4652 | 4887 | 5594 |
2800 | 1826 | 2296 | 2764 | 3234 | 3595 | 3777 | 4318 | 2335 | 3002 | 3668 | 4334 | 4824 | 5068 | 5802 |
2900 | 1891 | 2378 | 2862 | 3350 | 3724 | 3912 | 4472 | 2419 | 3109 | 3799 | 4489 | 4997 | 5249 | 6009 |
3000 | 1956 | 2460 | 2961 | 3465 | 3852 | 4047 | 4626 | 2502 | 3216 | 3930 | 4644 | 5169 | 5430 | 6216 |
