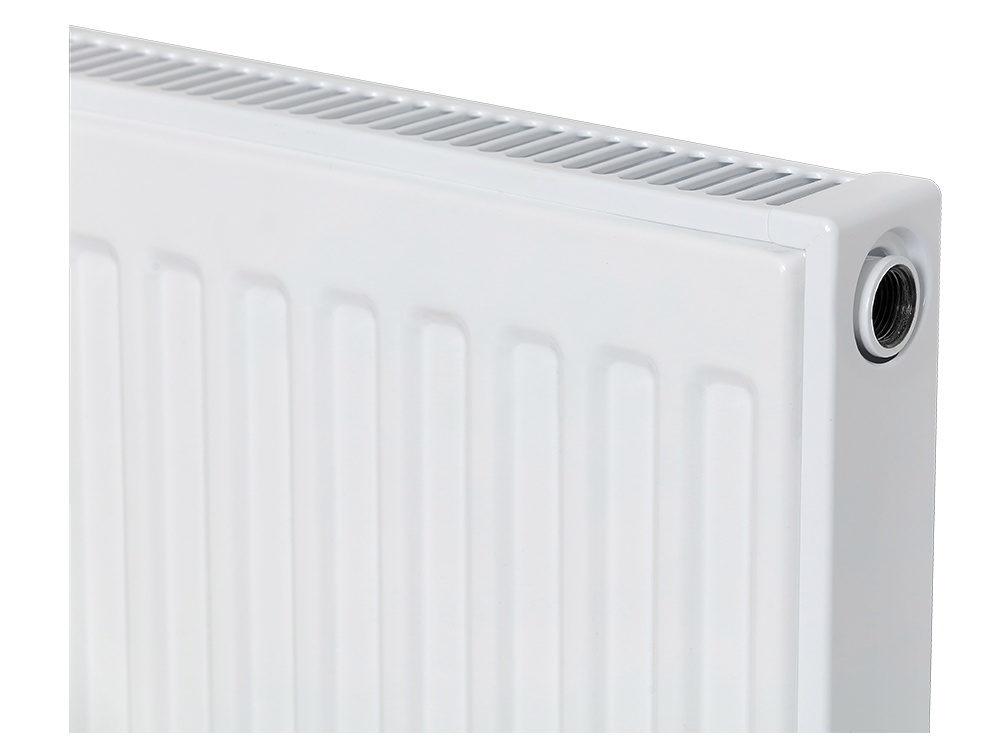

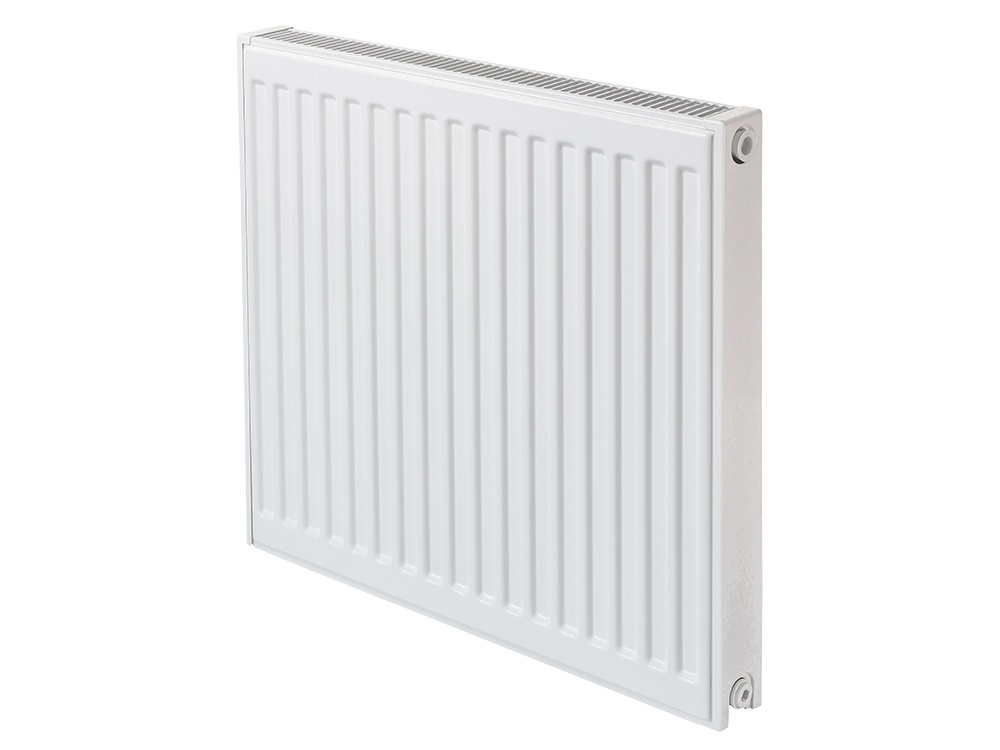

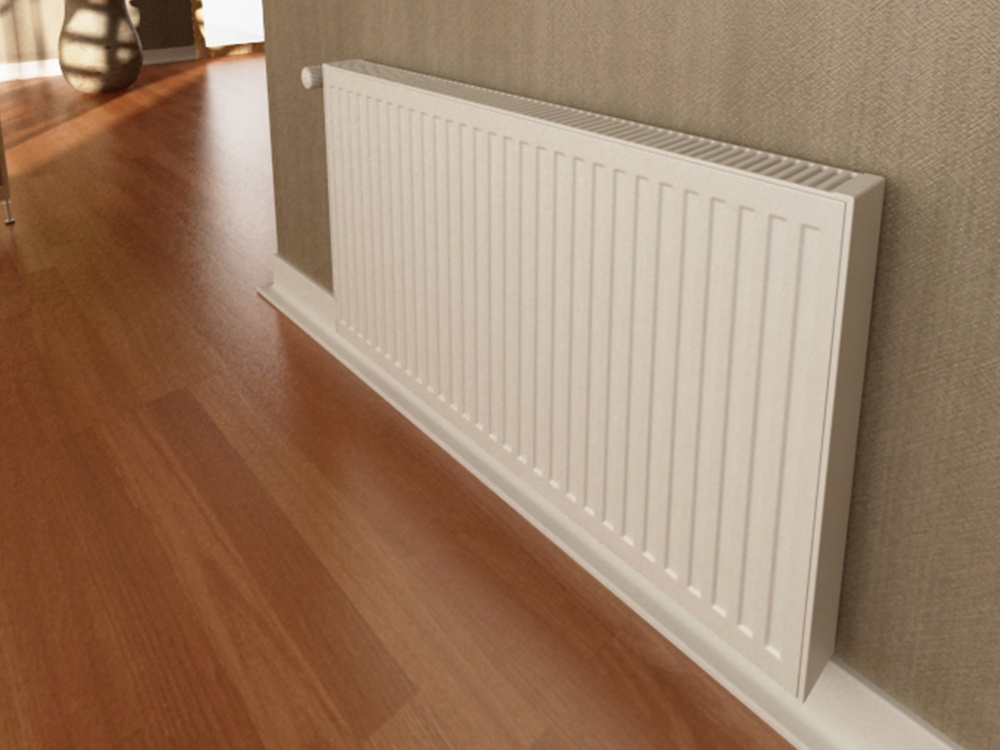

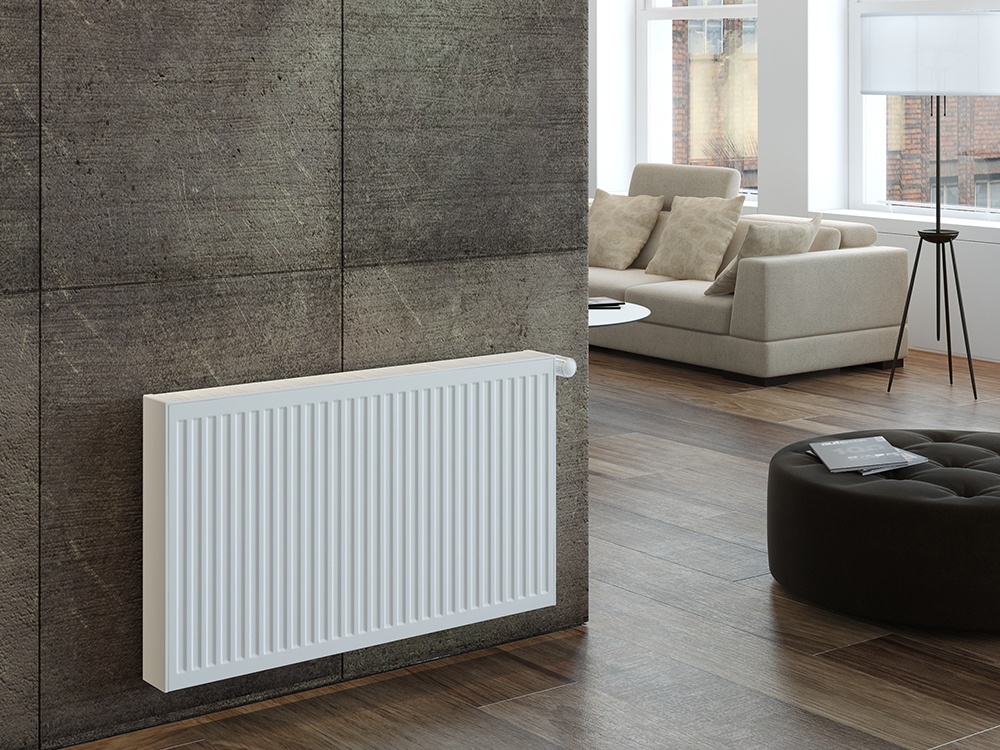

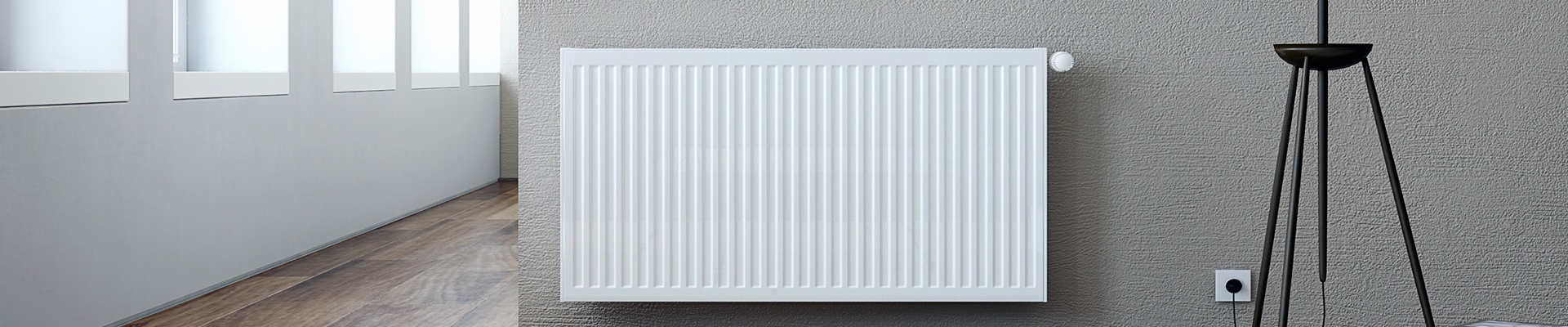

4 Connection Panel Radiators

4 Connection Panel Radiators

4 Connection Panel Radiators
Usage Usage
Long-Lasting Usage and Superior Quality
Options Options
Various Length Options
Efficiency Efficiency
High Efficiency and Thermal Power

Warmhaus radiators are the perfect fit for functionality and elegant look. Thanks to our state-of-the-art production lines, all our products comply with DIN EN 442 standards and have a 10 year warranty. Our aim is to warm you up with a long-lasting product that suits your living environment.

  • Measurements:
    Type 10 - 50 mm,
    Type 11 - Width 60 mm,
    Type 20 - Width 70 mm,
    Type 21 - Width 70mm,
    Type 22 - Width 105mm,
    Type 33 - Width 160mm.
  • Height: 300-400-500-600-700-900 mm
  • Length: 400-2400 mm
  • With or without hanger
  • Thermostatic control
  • Interval-Range: 100 mm / 400-1600 mm --- 200 mm / 1800-3000 mm
  • Test Pressure: 13 bar
  • Max. Operating Pressure: 10 bar
  • Max Water Temperature: 110°C
  • Warranty: 10 Years

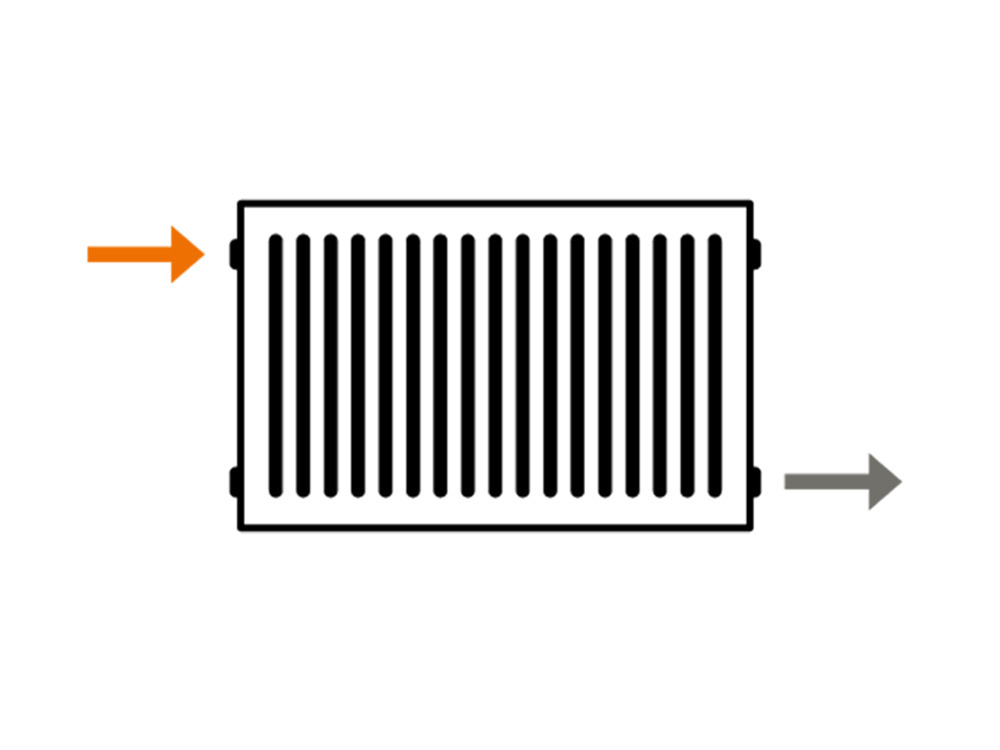

  • Number of Connections: 4 x DIN G ½
  • Pipe Diameter: 33mm bend
  • Maximum Sheet Metal Usage
  • High Corrosion Resistance
  • Paint with RAL9010 and RAL9016 color codes
  • Water Capacity: 6.8 liters
  • Test Pressure: 13 bar
  • Max. Operating Pressure: 10 bar
  • Max Water Temperature: 110°C
  • Warranty: 10 Years
  • Number of Connections: 4x DIN G ½
  • Pipe Diameter: 33mm bend
  • Maximum Sheet Metal Usage
  • High Corrosion Resistance
  • Paint with RAL9010 and RAL9016 color codes
  • High Thermal Efficiency
  • Elegant Design
  • Practical Installation
  • Extensive Product Range
  • Water Capacity: 6.8 liters
TYPE Nominal Size (mm) Center of Distance (mm) Width (mm) Length Min. - Max. (mm) Water Content (L/m)
21 PKP 300 300 70 400 - 3000 3,78
400 400 70 400 - 3000 4,79
500 500 70 400 - 3000 5,79
600 600 70 400 - 3000 6,80
900 900 70 400 - 3000 10,20
22 PKKP 300 300 105 400 - 3000 3,78
400 400 105 400 - 3000 4,79
500 500 105 400 - 3000 5,79
600 600 105 400 - 3000 6,80
900 900 105 400 - 3000 10,20
For technical specifications of all Panel Radiator models, you can use the technical brochure or catalogue on our website!
PANEL RADIATORS HEAT EFFICIENCY TABLE- 75/65/20 °C DT:50
Height (Nominal: mm) TYPE 10 TYPE 11 TYPE 20 TYPE 21 TYPE 22 TYPE 23
watt kcal watt kcal watt kcal watt kcal watt kcal watt kcal
300 353 304 505 435 609 525 764 659 967 834 1373 1184
400 442 381 645 556 768 662 962 829 1225 1056 1748 1507
500 528 455 777 670 921 794 1152 993 1474 1271 2103 1813
600 614 529 900 776 1068 920 1337 1153 1718 1481 2440 2103
700 699 603 1016 876 1207 1040 1518 1309 1959 1689 2762 2381
900 870 750 1228 1059 1484 1279 1874 1616 2432 2097 3366 2902
